EX
LANGO

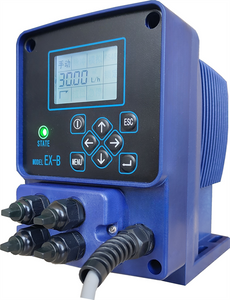

The smart digital metering pump EX is a compact positive displacement, diaphragm dosing pump with BLDC motor and intelligent control electronics with minimum energy consumption.The efficency can be up to 90%. By using helical gears and auxiliary springs, the power consumption is reduced by 70% compared with conventional rebound designs.The EX series pump is FOC closed-loop control and operates at full stroke length to ensure optimum accuracy, priming and suction. The duration of each discharge stroke varies according to the capacity set, resulting in optimum smooth and continuous discharge flow.
Main Performance Parameters
Max Flow Rate: 800L/H
Max Pressure: 10 Bars
Adjustment range: 1% and 100%
Steady State Accuracy: up to ± 0.1%
Allowable Ambient Temperature: 0~40°C.
Allowable Liquid Temperature: 0~40°C(PVC) 0~60°C(PVDF/SS)
Voltage: Wide range AC100~240V,50~60Hz
Main Features
Manual and automatic flow control
3.5-inch color LCD display screen
Various pump head materials such as PVC, PVDF, SS316, etc
Pulse/4-20mA/RS485/Batch/Repaire mode (details see below table)
Technical Parameter
Paramter | Description |
Mounting plate | basic mounting |
Supply voltage | AC100 - 240 V, 50 - 60 Hz single phase |
Enclosure class | IP 65 |
Control panel position | Front fixed |
Transparent protective cover for control elements | Yes |
Capacity setting | in litres |
LCD display | with background light in three colours for status indication: green, yellow, red |
Plain-text menu in different languages | Chinese/English/others on request |
Navigation buttons | Press key buttons |
Capacity adjustment | (0 . 1 - 100 %) |
Start / Stop key | Yes |
Menu key | Yes |
Quick exhaust | Yes |
Pulse control | in ml/pulse |
Pulse control | (1:n)(divide or multiply) |
Analog control | 4 - 20 mA |
Batch control | (pulse-based ) |
Dosing timer cycle | Yes |
Modbus control functions | Yes |
Auto de aeration | Optional functions |
Pressure monitoring (min / max) | Yes |
SlowMode ( anti- cavitation) | Yes |
Calibration mode | Yes |
Relay setting | alarm, warning |
External stop control | Yes |
Input for pulse control | Yes |
Input for analog 4 - 20 mA control | Yes |
Input for low -level signal | Yes |
Input for empty tank signal | Yes |
Output relay | (2 relays) |
Output analog 4 - 20 mA | Yes |
Output power | DC12V Max 50mA |
Repare mode | Yes |
Parameter Table
Model | Max Pressure | Flow | Diaphragm | Power | Current |
EX-C022 | 1.0 | 22 | 65 | 72W | 1 |
EX-C045 | 1.0 | 45 | 65 | ||
EX-C090 | 0.5 | 90 | 84 | ||
EX-C120 | 0.4 | 120 | 84 | ||
EX-D260 | 0.7 | 260 | 130 | 260W | 6 |
EX-D500 | 0.5 | 500 | 130 | ||
EX-D1000 | 0.4 | 800 | 130 |
Liquid End Material
Head | Ball | Seat | Cover | Oring | Diaphragm |
PVC | Ceramic | PVC | PVC | EPDM | Composite PTFE |
PVDF | Ceramic | PVDF | PVDF | EPDM | |
SS316 | SS316 | SS316 | SS316 | PTFE |
Connection
Model | PVC | PVDF | SS316 |
EX-C022 | DN15 glue union | DN15 welding union | 1/2" female thread |
EX-C045 | DN15 glue union | DN15 welding union | 1/2" female thread |
EX-C090 | DN15 glue union | DN15 welding union | 1/2" female thread |
EX-C120 | DN15 glue union | DN15 welding union | 1/2" female thread |
EX-D260 | DN20 glue union | DN20 welding union | 1" female thread |
EX-D500 | DN20 glue union | DN20 welding union | 1" female thread |
EX-D800 | DN20 glue union | DN20 welding union | 1" female thread |
Identification Code
ID | EX | C | 22/10 | C | U | C |
Item | 1 | 2 | 3 | 4 | 5 | 6 |
Code | Serial | Power | Flow/Pressure | Material | Connection | Plug |
Item | Code | Description |
1 | EX | Smart Digital Pump EX Serials |
2 | C | Power 72W |
D | Power 260W | |
3 | XX/XX | Flow in L/H & Pressure in Bars( paramter see above table) |
4 | C | PVC head/Ceramic ball/PVC seat/PVC cover/EPDM O ring |
F | PVDF head/Ceramic ball/PVDF seat/PVDF cover/EPDM O ring | |
6 | SS316 head/Ceramic ball/SS316 seat/SS316 cover/PTFE O ring | |
5 | F | Flange |
R | Hose | |
U | Union | |
Y | Thread | |
6 | A | Australia, New Zealand, Taiwan |
B | British | |
C | China | |
E | Europe | |
U | United States | |
S | South Africa | |
X | No Plug | |
1. The performance of the pump is obtained by clean water under a rated voltage and ambient temperature. |
Water treatment, waste water treatment, food&beverage, chemical, general industry, etc.
